7440660022
Manufacturer:
Wurth Electronics
Mfr.Part #:
7440660022
Datasheet:
Description:

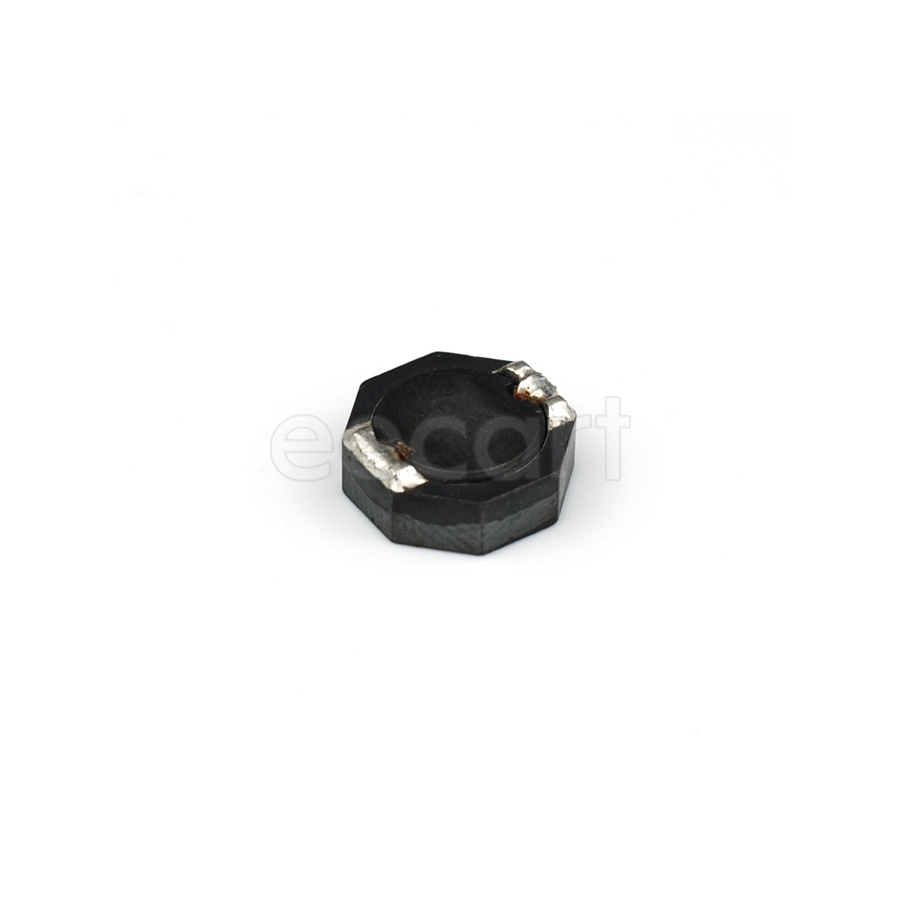

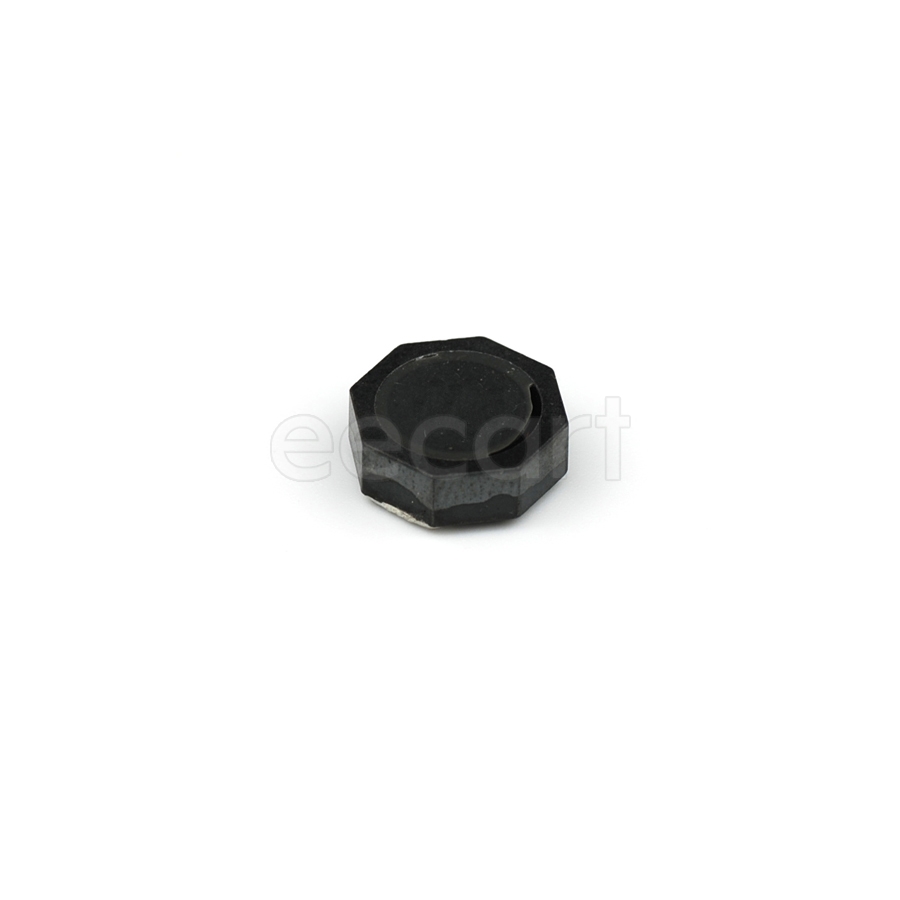

Fixed Inductors 10.00mmL×10.00mmW×4.10mmH SMD/SMT 2.2 µH 30 % 6.7 A 10.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4.1 mm |
| Length | 10 mm |
| Width | 10 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 55 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 10.5 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| inductance tolerance | 30 % |
| Saturation Current | 6.8 A |
| Current Rating | 6.7 A |
Stock: 716
Distributors
pcbx
pcbxUnit Price$1.28923
Ext.Price$1.28923
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28923 | $1.28923 |
| 10 | $1.25162 | $12.51620 |
| 25 | $1.17079 | $29.26975 |
| 50 | $1.09517 | $54.75850 |
| 100 | $1.00113 | $100.11300 |
| 300 | $0.96942 | $290.82600 |
| 500 | $0.93871 | $469.35500 |
| 1000 | $0.75747 | $757.47000 |
